Chemical Storage Tank
| Model: | Chemical Storage Tank |
| Colour: | White & Black |
| Technology: | Roto Moulding |

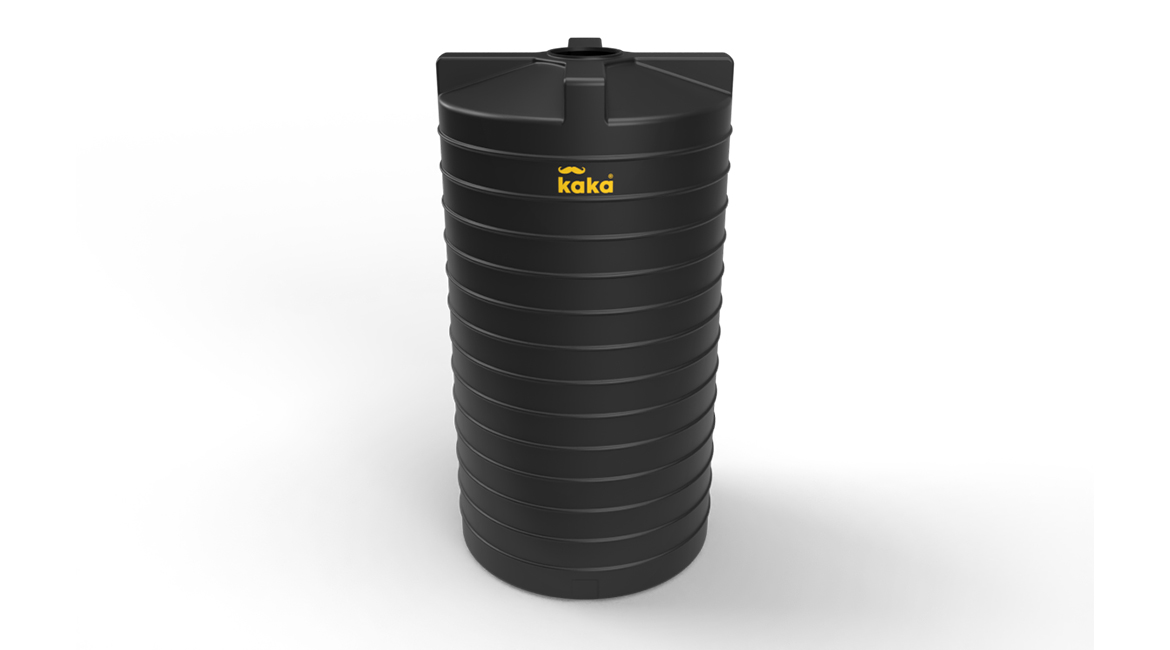

Chemical Storage Tank
We understand the distinct environment chemicals need to be stored in. We understand the need for a distinct shape and the leak-proof quality required for it. We offer the quality and strength you require.
Technical Details
| Model | Capacity (liters) | Dia. (inch) | Height (inch) | Manhole (inch) | ||
|---|---|---|---|---|---|---|
| KCCV(I)-020-01 | 200 | 28.50 | 25.50 | 11.50 | ||
| KCCV(I)-030-01 | 300 | 28.50 | 35.50 | 11.50 | ||
| KCCV(I)-040-01 | 400 | 34.50 | 35.50 | 11.50 | ||
| KCCV(I)-050-01 | 500 | 34.50 | 40.00 | 17.75 | ||
| KCCV(I)-075-01* | 750 | 39.50 | 46.00 | 17.75 | ||
| KCCV(I)-100-01 | 1000 | 43.00 | 50.00 | 17.75 | ||
| KCCV(I)-150-01 | 1500 | 51.00 | 52.00 | 17.75 | ||
| KCCV(I)-200-01 | 2000 | 52.50 | 65.00 | 17.75 | ||
| KCCV(I)-250-01 | 2500 | 61.00 | 71.00 | 17.75 | ||
| KCCV(I)-300-01 | 3000 | 57.50 | 82.00 | 17.75 | ||
| KCCV(I)-400-01 | 4000 | 73.00 | 74.00 | 17.75 | ||
| KCCV(I)-500-01 | 5000 | 75.50 | 80.50 | 17.75 | ||
| KCCV(I)-750-01 | 7500 | 76.00 | 116.00 | 19.00 | ||
| KCCV(I)-1000-01 | 10000 | 76.00 | 147.50 | 19.00 | ||
| KCCV(I)-1000-02 | 10000 | 85.00 | 126.00 | 19.00 | ||
